Full Automatic Wooden Board Joining Production Line Solution
Product description
THE APPLICATION OF FULL AUTOMATIC HIGH FREQUENCY BOARD JOINING PRODUCTION LINE SOLUTION
This automatic production line can be used for mass product finger-jointed integrated boards, edge glued panels, furniture panels, etc. Suitable for manufacturers who needed produce large quantities of wood panels or quickly increase production capacity.
The process sections(customizable):

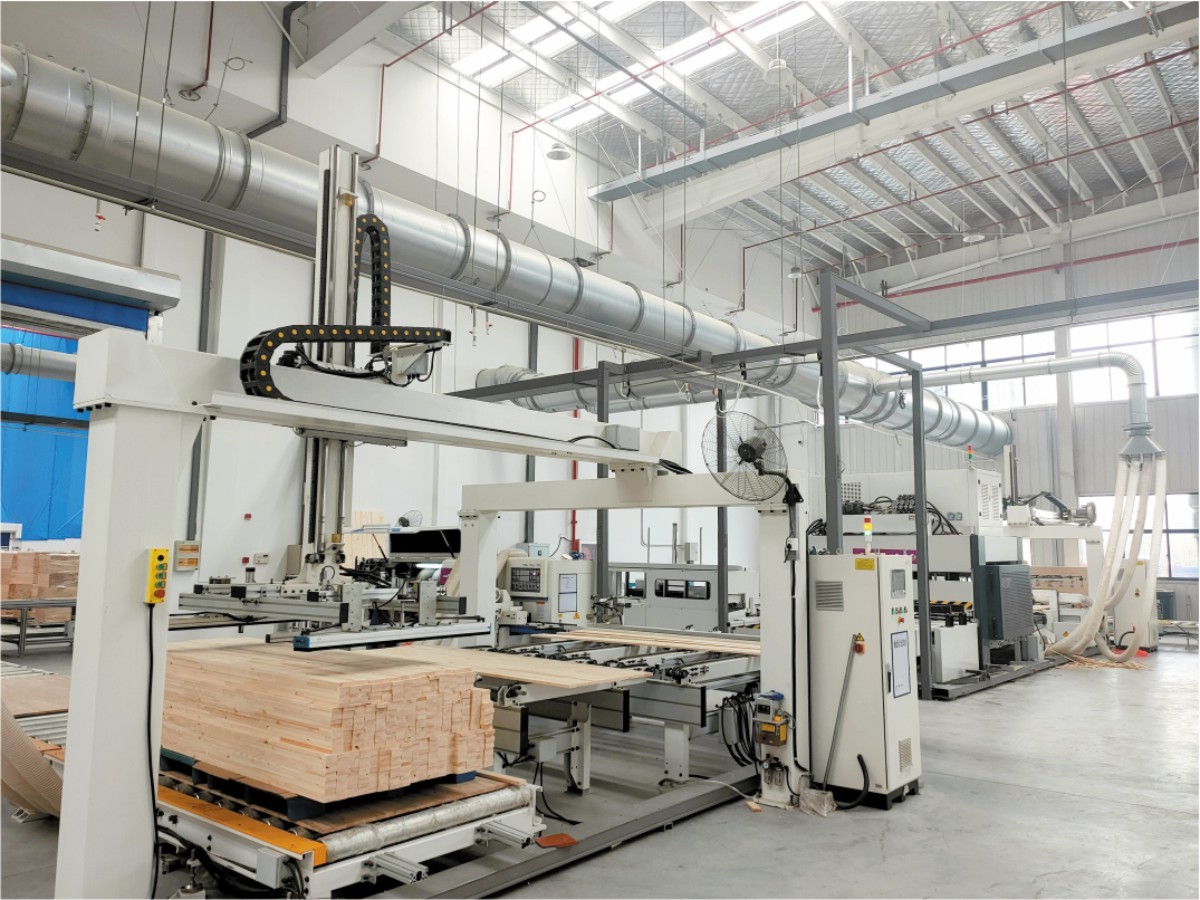

- Gantry feeding process section: The floor roller sends the slates to the gantry feeding machine for feeding.

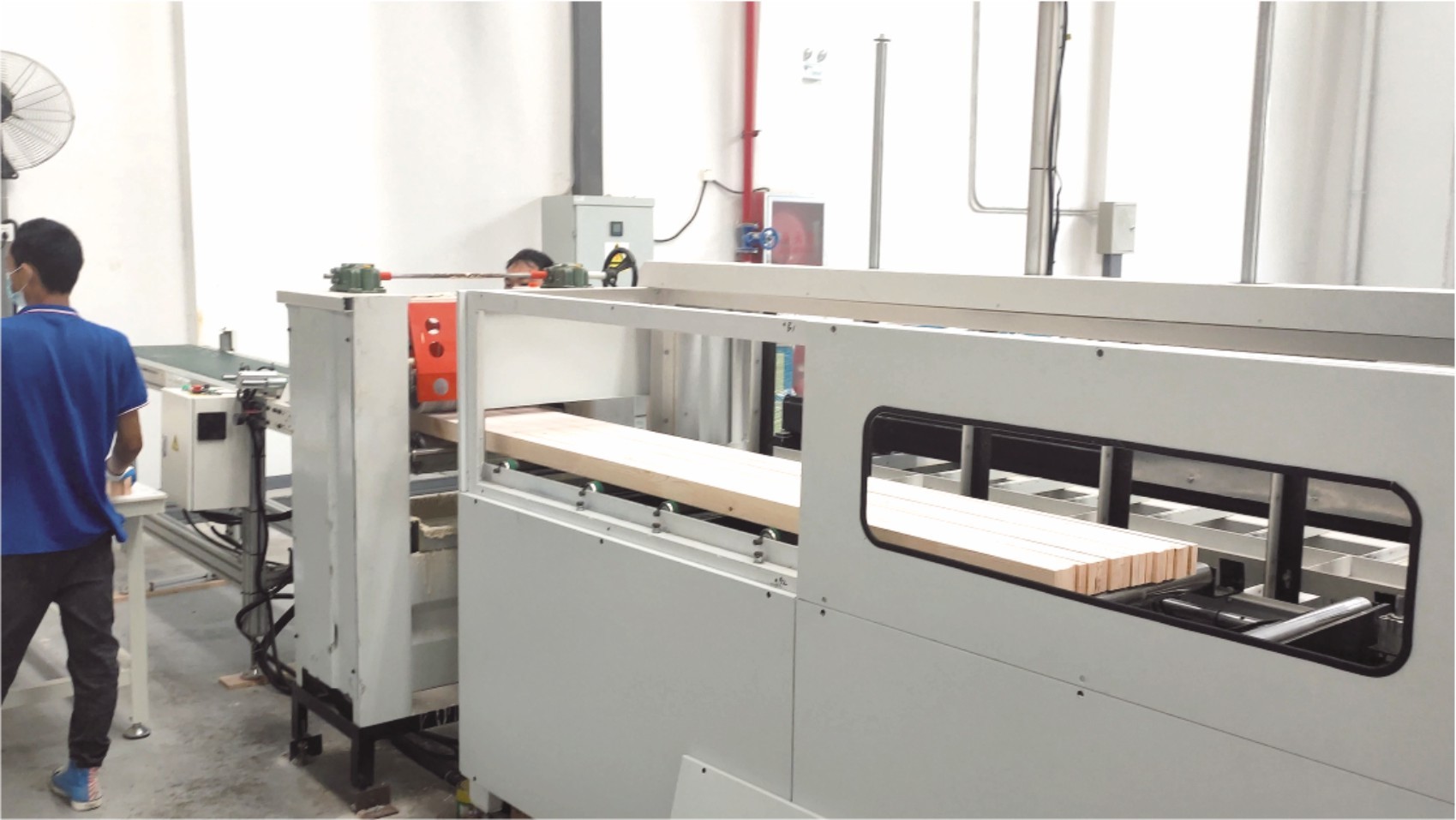

- Four-side planning process section: The wood is planned precisely on all sides.

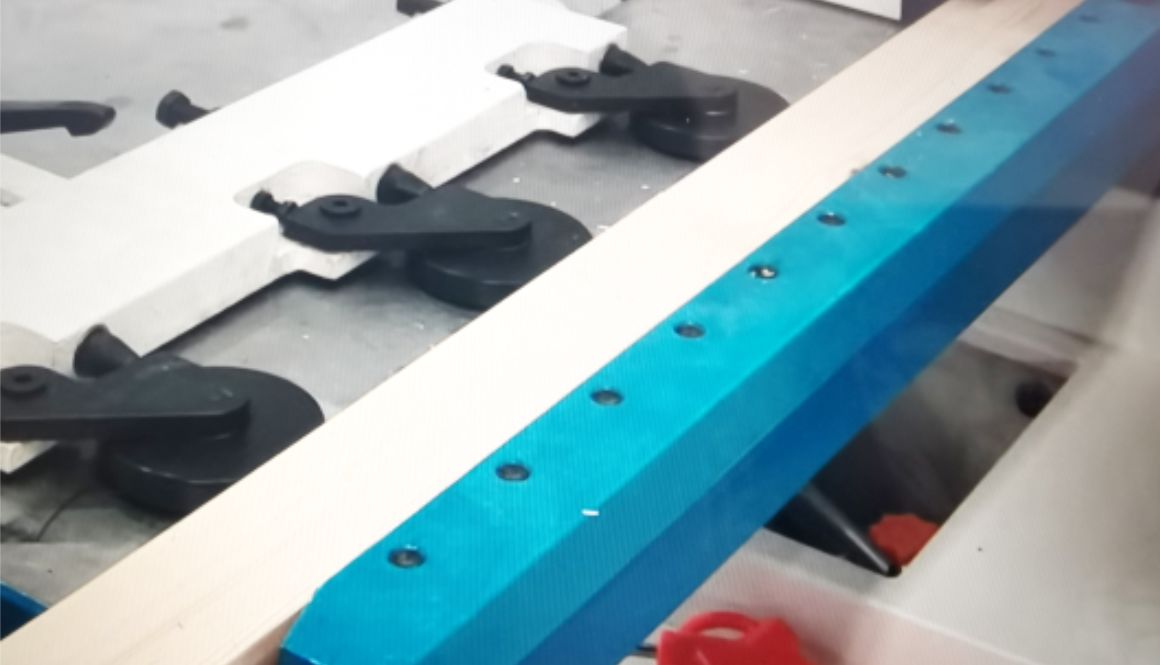

- Gluing and arranging the plates process section: After fine planing, the wood enters the gluing area and automatically discharges.

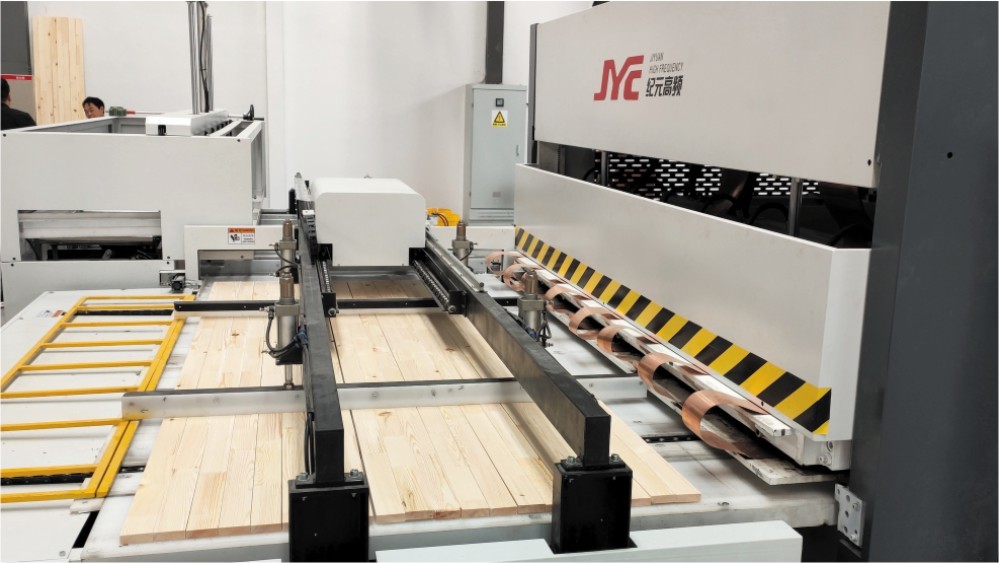

- HF heating and joining process section: The aligned wood slats were fed into the HF press machine, and then they were pressurized and heated.

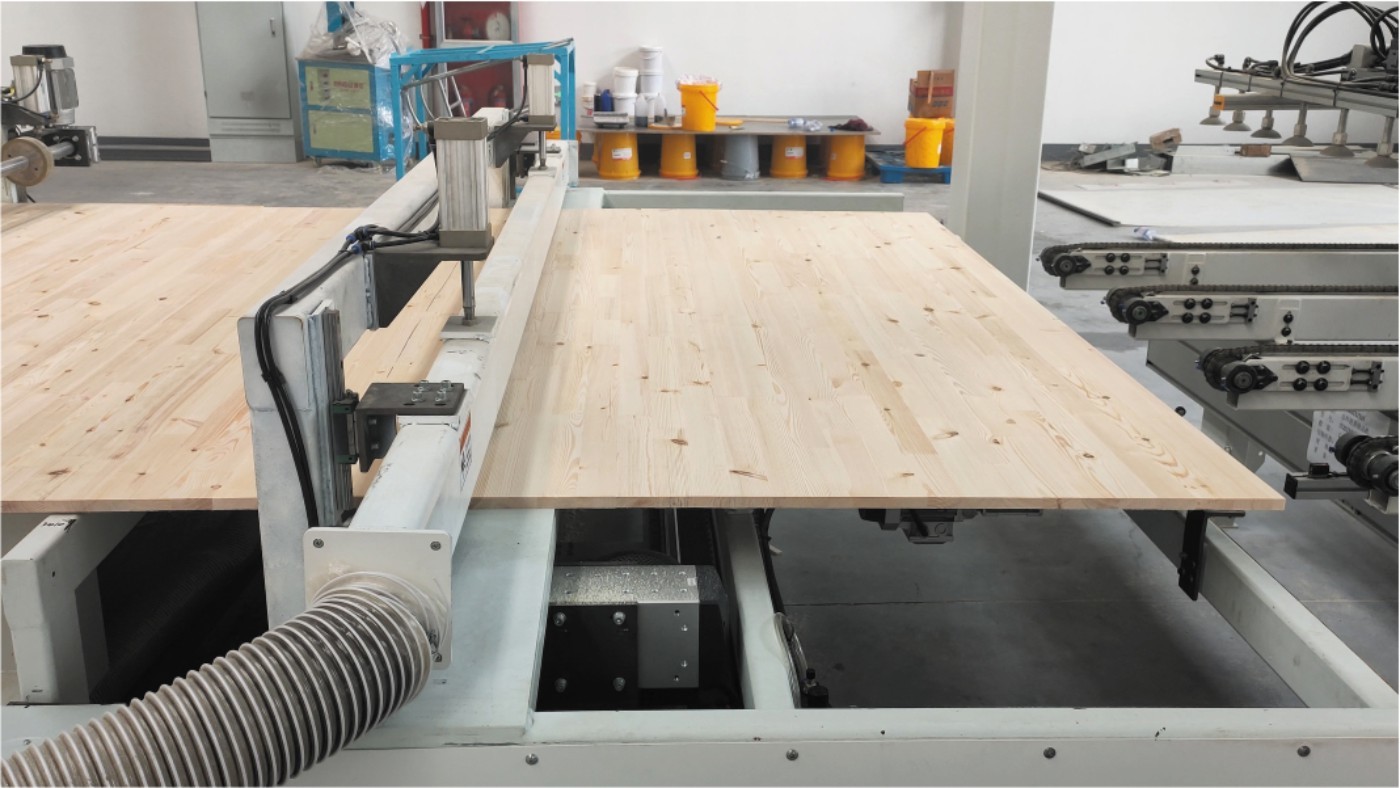

- Automatic sawing process section: Aligned the upper and lower ends of the joined panels, and then sawed the panel accurately.
- Automatic palletizing process section: The suction cups on the gantry palletize the sawn panels automatically.
THE ADVANTAGES OF THE PRODUCTION LINE
One person can operate and produce, saving more cost.

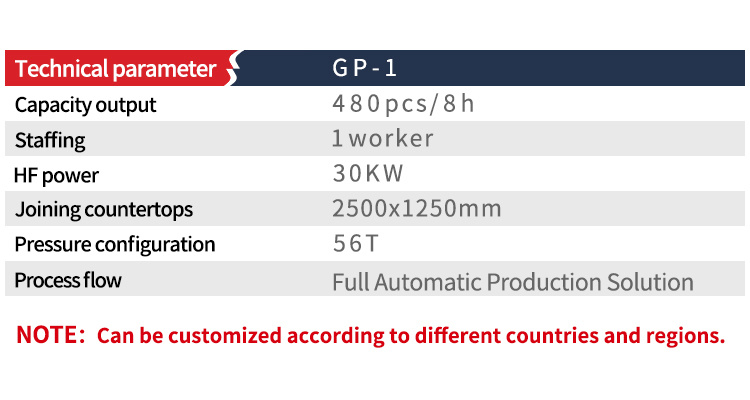

8 hours can produce 480 pieces of panels, high productivity.
